量子神经网络（QNN）¶
本教程旨在介绍如何使用 QuICT 中内置的 FRQI 量子图像编码方式和量子神经网络模块构建一个用于分类 MNIST 手写数据集的量子神经网络（Quantum Neural Network, QNN）。
导入运行库¶
首先，导入必要的运行库及相关依赖，并固定随机种子：
import collections
import yaml
import time
import tqdm
import matplotlib.pyplot as plt
from torchvision import datasets, transforms
from QuICT.algorithm.quantum_machine_learning.ansatz_library import BasicQNN
from QuICT.algorithm.quantum_machine_learning.encoding import FRQI
from QuICT.algorithm.quantum_machine_learning.model.QNN import QuantumNet
from QuICT.algorithm.quantum_machine_learning.optimizer.optimizer import Adam
from QuICT.algorithm.quantum_machine_learning.utils.data import Dataset, DataLoader
from QuICT.algorithm.quantum_machine_learning.utils.loss import MSELoss
from QuICT.algorithm.quantum_machine_learning.utils.ml_utils import *
SEED = 0
set_seed(SEED)
加载和预处理 MNIST 数据¶
在本教程中，我们将对数字3和6进行分类，并使用 FRQI [2] 编码方式对将灰度图像编码为量子电路。对MNIST数据集的预处理主要目的是 使图片能够在尽量保留较多信息的情况下成功被编码为量子电路。
1. 加载原始 MNIST 数据¶
Pytorch 的 torchvision 库中的 datasets 能够自动下载 MNIST 手写数据集：
train_data = datasets.MNIST(root="./data/", train=True, download=True)
test_data = datasets.MNIST(root="./data/", train=False, download=True)
train_X = train_data.data
train_Y = train_data.targets
test_X = test_data.data
test_Y = test_data.targets
print("Training examples: ", len(train_Y))
print("Testing examples: ", len(test_Y))
2. 筛选数据集使其仅包含数字3和6¶
为了实现对数字3和6的二分类，我们需要删除其他数字，只保留标签为3和6的数据。并且定义标签 y = 6 为正类， y = 3 为负类：
def filter_targets(X, Y, class0=3, class1=6):
idx = (Y == class0) | (Y == class1)
X, Y = (X[idx], Y[idx])
Y = Y == class1
return X, Y
train_X, train_Y = filter_targets(train_X, train_Y)
test_X, test_Y = filter_targets(test_X, test_Y)
print("Filtered training examples: ", len(train_Y))
print("Filtered testing examples: ", len(test_Y))
随机选择一个数据并显示：
3. 缩小图像¶
原始的 MNIST 数据集图片尺寸是 \(28\times28\)，而 FRQI 编码只适用于分辨率为 \(2^n \times 2^n\) 的图像，因此需要将其缩小到 \(16\times16\)：
def downscale(X, resize):
transform = transforms.Resize(size=resize)
X = transform(X) / 255.0
return X
RESIZE = (16, 16)
resized_train_X = downscale(train_X, RESIZE)
resized_test_X = downscale(test_X, RESIZE)
同样地，显示序号为200的图像：
4. 去除冲突数据¶
在经过向下采样后，可能会产生部分重复图片，并且这些重复图片可能会同时被标记为正类和负类。为了避免这对分类结果造成影响，需要去除同一图片被同时标记为3和6的样本：
def remove_conflict(X, Y, resize):
x_dict = collections.defaultdict(set)
for x, y in zip(X, Y):
x_dict[tuple(x.numpy().flatten())].add(y.item())
X_rmcon = []
Y_rmcon = []
for x in x_dict.keys():
if len(x_dict[x]) == 1:
X_rmcon.append(np.array(x).reshape(resize))
Y_rmcon.append(list(x_dict[x])[0])
X = np.array(X_rmcon)
Y = np.array(Y_rmcon)
return X, Y
train_X, train_Y = remove_conflict(resized_train_X, train_Y, RESIZE)
test_X, test_Y = remove_conflict(resized_test_X, test_Y, RESIZE)
print("Remaining training examples: ", len(train_Y))
print("Remaining testing examples: ", len(test_Y))
从结果可见本组实验数据中并无冲突样例，但是这个预处理步骤是必要的，如果改变分类的数字或者预处理方式，如：改变图像下采样尺寸，改变图像灰度阶数等，非常有可能出现冲突数据。
将图像数据通过量子电路编码为量子态¶
本教程将使用 FRQI 编码（Flexible Representation of Quantum Images）[2] 将图片数据转换为量子态。
对于一张 \(2^n \times 2^n\) 的图像， FRQI 编码需要使用 \(2n + 1\) 个量子比特，其中前 \(n\) 个量子比特描述像素的 Y 坐标，接下来的 \(n\) 个量子比特描述像素的 X 坐标，这 \(2n\) 个量子比特统称为位置量子比特，用于描述像素在图像中的位置，最后一个量子比特用于描述像素的灰度值，称为颜色量子比特。FRQI 编码会将图像转化为量子态：
其中
可见FRQI是是一种混合编码，前半部分 \(\cos \theta_{i}|0⟩ + \sin \theta_{i}|1⟩\) 为连续编码，代表像素颜色，在电路中通过使用受控 Ry 门并设置不同的旋转角度来表示不同灰度值；后半部分 \(|i⟩\) 为离散编码，表示像素的位置，在电路中用位置量子比特的受控情况表示像素的横纵坐标。

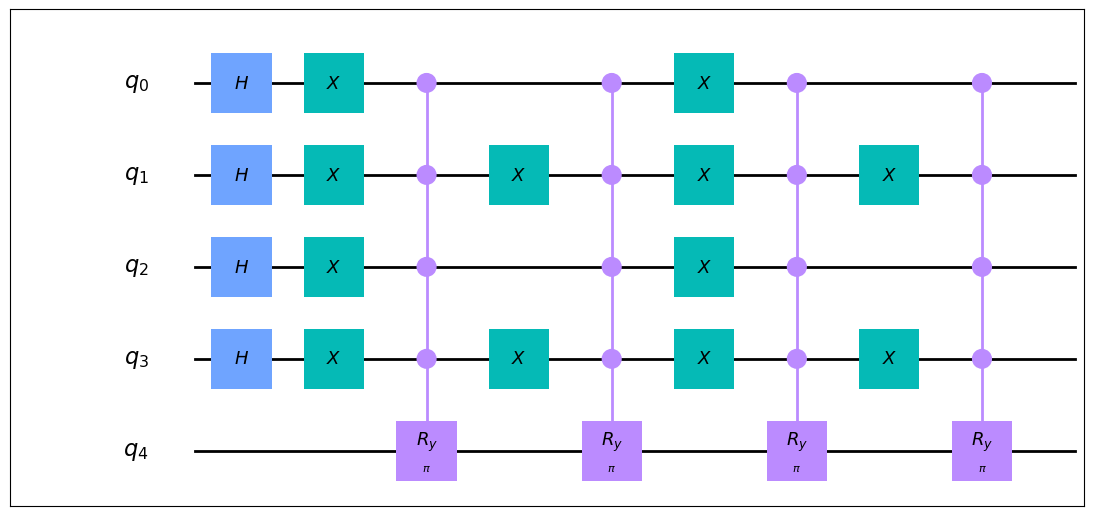

QuICT 的 encoding 库内置了 FRQI 编码方式，以这样一张 4x4 的二值图为例:
img = np.array([[1, 0, 0, 0], [0, 1, 0, 0], [0, 0, 1, 0], [0, 0, 0, 1]])
plt.imshow(img, cmap="gray")
Info
QuICT 的 encoding 库目前内置了 QubitLattice, FRQI, 和 NEQR 三种图像编码方式。其中 FRQI 和 NEQR 支持对灰度图进行编码，并内置了可以减少编码后电路量子门数的量子图像压缩选项。
此处，我们可以批量化的生成FRQI编码使用的量子电路：
def encoding_img(X, encoding):
data_circuits = []
for i in tqdm.tqdm(range(len(X))):
data_circuit = encoding(X[i])
data_circuits.append(data_circuit)
return data_circuits
frqi = FRQI(grayscale=256)
train_X = encoding_img(train_X, frqi)
test_X = encoding_img(test_X, frqi)
100%|██████████| 12049/12049 [00:11<00:00, 1035.43it/s]
100%|██████████| 1968/1968 [00:02<00:00, 788.43it/s]
最后，设置好 batch_size ，即：每次迭代需要使用的数据数量，将编码好的图像量子电路装入支持迭代取数据的 DataLoader ，每轮训练开始前都将数据打乱
以避免模型学到数据顺序，对于数据总数无法整除 batch_size 的情况，丢掉最后一个 batch ：
BATCH_SIZE = 32
train_dataset = Dataset(train_X, train_Y)
test_dataset = Dataset(test_X, test_Y)
train_loader = DataLoader(
dataset=train_dataset, batch_size=BATCH_SIZE, shuffle=True, drop_last=True
)
test_loader = DataLoader(
dataset=test_dataset, batch_size=BATCH_SIZE, shuffle=True, drop_last=True
)
量子神经网络¶
本教程根据 Farhi et al.[2] 使用的方法进行简化构建模型量子电路，主要用始终作用于读出量子比特的双比特门进行电路构建。
1. 构建模型电路¶
模型电路除了数据量子比特之外，还额外有一个读出量子比特，用于存储预测的分类结果，根据 Measure 门的测量结果是 \(\left | 0 \right \rangle\) 和 \(\left | 1 \right \rangle\) 判定输入图片属于正类还是负类。 在模拟中通常使用 Pauli-Z 测量，由于 Z 算子的谱分解形式为：
可见 Z 算子有两个特征值 \(+1\) 和 \(-1\)，对应的特征向量分别是 \(\left | 0 \right \rangle\) 和 \(\left | 1 \right \rangle\)，当使用 Z 算子做投影测量，如果测量结果为 \(+1\) 则测量态被投影成 \(\left | 0 \right \rangle\) ，如果测量结果为 \(-1\) 则测量态被投影成 \(\left | 1 \right \rangle\) 。
QuICT 中可以通过设置哈密顿量 \(H\) 计算测量期望值，再通过期望值求得正类和负类的预测概率：
Farhi et al.[2] 使用的模型量子电路，是用双比特门（通常是 RXX，RYY，RZZ 和 RZX 门）始终作用在读出量子比特，和全部数据量子比特上构建的。 QuICT 内置了这样的 QNN 模型电路，我们规定最后一个量子比特是读出量子比特比特，其他量子比特是数据量子比特：

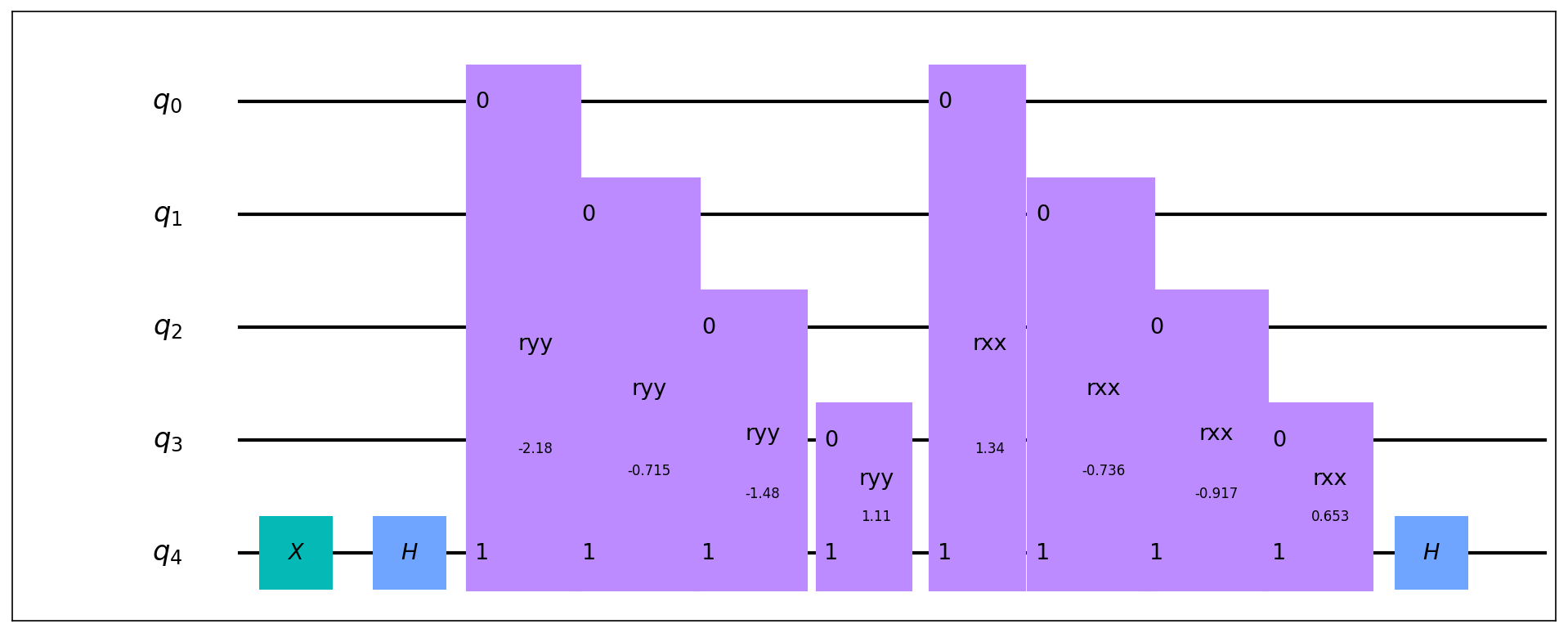

以含4个数据量子比特的情况为例，双层 RYY , RXX 的 QNN 模型电路应为：
Info
QuICT 的 ansatz 库中内置了 BasicQNN, CRADL, CRAML, Hardware-Efficient Ansatz 共 4 种 ansatz 供用户调用。
本教程中将使用三层网络，分别是 RYY 层，RZZ 层和 RZX 层，可训练参数的数量为数据量子比特数 * 网络层数，即 27 个：
2. 用 QuICT 内置的 QuantumNet 进行训练¶
封装好编码后的图像数据，并根据需求构建好模型电路后，就可以使用 QuICT 封装好的 QuantumNet 模块进行训练了。 QuantumNet 模块支持自动微分，只需传入定义好的模型电路和优化器即可完成 QNN 更新需要的前向传播和反向传播过程。
首先，设置机器学习相关参数：
定义待训练的 QNN 网络，损失函数和经典优化器，此处使用均方误差损失函数和 Adam 优化器：
loss_fun = MSELoss()
optimizer = Adam(lr=LR)
net = QuantumNet(
n_qubits=n_qubits,
ansatz=ansatz,
optimizer=optimizer,
device="CPU",
)
Info
QuICT 中内置了三种损失函数，分别是 MSE 损失函数，Hinge 损失函数，和 BCE 损失函数。同时包含 SGD, AdaGrad, RMSProp, Adam 四种经典优化器。
开始训练，每轮训练完成后进行一轮验证：
for ep in range(EPOCH):
# Train
loader = tqdm.tqdm(
train_loader, desc="Training epoch {}".format(ep + 1), leave=True
)
for it, (x_train, y_train) in enumerate(loader):
expectations = net.forward(x_train) # (32, 1)
y_true = (2 * y_train - 1.0).reshape(expectations.shape)
y_pred = -expectations
loss = loss_fun(y_pred, y_true)
# optimize
net.backward(loss)
# update
net.update()
correct = np.where(y_true * y_pred.pargs > 0)[0].shape[0]
accuracy = correct / len(y_train)
loader.set_postfix(
it=it, loss="{:.3f}".format(loss.item), accuracy="{:.3f}".format(accuracy)
)
# Validation
loader_val = tqdm.tqdm(
test_loader, desc="Validating epoch {}".format(ep + 1), leave=True
)
loss_val_list = []
total_correct = 0
for it, (x_test, y_test) in enumerate(loader_val):
expectations_val = net.forward(x_test, train=False)
y_true_val = (2 * y_test - 1.0).reshape(expectations_val.shape)
y_pred_val = -expectations_val
loss_val = loss_fun(y_pred_val, y_true_val)
loss_val_list.append(loss_val.item)
correct_val = np.where(y_true_val * y_pred_val.pargs > 0)[0].shape[0]
total_correct += correct_val
accuracy_val = correct_val / len(y_test)
loader_val.set_postfix(
it=it,
loss="{:.3f}".format(loss_val.item),
accuracy="{:.3f}".format(accuracy_val),
)
avg_loss = np.mean(loss_val_list)
qnn_avg_acc = total_correct / (len(loader_val) * BATCH_SIZE)
print("Validation Average Loss: {}, Accuracy: {}".format(avg_loss, qnn_avg_acc))
Training epoch 1: 100%|██████████| 376/376 [02:41<00:00, 2.32it/s, accuracy=0.906, it=375, loss=0.935]
Validating epoch 1: 100%|██████████| 61/61 [00:18<00:00, 3.34it/s, accuracy=0.938, it=60, loss=0.938]
Validation Average Loss: 0.9394127107271177, Accuracy: 0.8837090163934426
Training epoch 2: 100%|██████████| 376/376 [02:41<00:00, 2.32it/s, accuracy=0.844, it=375, loss=0.934]
Validating epoch 2: 100%|██████████| 61/61 [00:18<00:00, 3.35it/s, accuracy=0.844, it=60, loss=0.907]
Validation Average Loss: 0.9182945990390312, Accuracy: 0.9118852459016393
Training epoch 3: 100%|██████████| 376/376 [02:42<00:00, 2.32it/s, accuracy=0.906, it=375, loss=0.883]
Validating epoch 3: 100%|██████████| 61/61 [00:18<00:00, 3.35it/s, accuracy=0.938, it=60, loss=0.874]
Validation Average Loss: 0.8638879795421284, Accuracy: 0.9252049180327869
Training epoch 4: 100%|██████████| 376/376 [02:41<00:00, 2.32it/s, accuracy=0.969, it=375, loss=0.823]
Validating epoch 4: 100%|██████████| 61/61 [00:18<00:00, 3.33it/s, accuracy=0.906, it=60, loss=0.804]
Validation Average Loss: 0.7808000876160641, Accuracy: 0.9646516393442623
Training epoch 5: 100%|██████████| 376/376 [02:41<00:00, 2.32it/s, accuracy=0.938, it=375, loss=0.760]
Validating epoch 5: 100%|██████████| 61/61 [00:18<00:00, 3.35it/s, accuracy=0.969, it=60, loss=0.755]
Validation Average Loss: 0.7496410566096504, Accuracy: 0.9605532786885246
Training epoch 6: 100%|██████████| 376/376 [02:42<00:00, 2.32it/s, accuracy=0.938, it=375, loss=0.728]
Validating epoch 6: 100%|██████████| 61/61 [00:18<00:00, 3.37it/s, accuracy=0.906, it=60, loss=0.742]
Validation Average Loss: 0.7384923100156554, Accuracy: 0.9600409836065574
Training epoch 7: 100%|██████████| 376/376 [02:41<00:00, 2.32it/s, accuracy=1.000, it=375, loss=0.716]
Validating epoch 7: 100%|██████████| 61/61 [00:18<00:00, 3.35it/s, accuracy=0.938, it=60, loss=0.740]
Validation Average Loss: 0.7300563092932201, Accuracy: 0.9646516393442623
Training epoch 8: 100%|██████████| 376/376 [02:42<00:00, 2.31it/s, accuracy=1.000, it=375, loss=0.716]
Validating epoch 8: 100%|██████████| 61/61 [00:18<00:00, 3.36it/s, accuracy=1.000, it=60, loss=0.688]
Validation Average Loss: 0.724440254241452, Accuracy: 0.9697745901639344
Training epoch 9: 100%|██████████| 376/376 [02:43<00:00, 2.31it/s, accuracy=1.000, it=375, loss=0.713]
Validating epoch 9: 100%|██████████| 61/61 [00:18<00:00, 3.36it/s, accuracy=1.000, it=60, loss=0.732]
Validation Average Loss: 0.7224605226930816, Accuracy: 0.9707991803278688
Training epoch 10: 100%|██████████| 376/376 [02:42<00:00, 2.32it/s, accuracy=1.000, it=375, loss=0.703]
Validating epoch 10: 100%|██████████| 61/61 [00:17<00:00, 3.42it/s, accuracy=0.969, it=60, loss=0.722]
Validation Average Loss: 0.7216466591301091, Accuracy: 0.9702868852459017
3. 用训练好的模型进行测试¶
QuICT 内置了保存和加载模型的函数，如果你已经有一个训练好的模型，可以加载它以用来测试 QNN 分类效果。
# Restore checkpoint
model_path = "YOUR MODEL PATH"
restore_checkpoint(net, model_path, restore_optim=True)
loader_test = tqdm.tqdm(
test_loader, desc="Testing: ", leave=True
)
loss_test_list = []
total_correct = 0
for it, (x_test, y_test) in enumerate(loader_test):
expectations_test = net.forward(x_test, train=False)
y_true_test = (2 * y_test - 1.0).reshape(expectations_test.shape)
y_pred_test = -expectations_test
loss_test = loss_fun(y_pred_test, y_true_test)
loss_test_list.append(loss_test.item)
correct_test = np.where(y_true_test * y_pred_test.pargs > 0)[0].shape[0]
total_correct += correct_test
accuracy_test = correct_test / len(y_test)
loader_test.set_postfix(
it=it,
loss="{:.3f}".format(loss_test.item),
accuracy="{:.3f}".format(accuracy_test),
)
avg_loss = np.mean(loss_test_list)
qnn_avg_acc = total_correct / (len(loader_test) * BATCH_SIZE)
print("Testing Average Loss: {}, Accuracy: {}".format(avg_loss, qnn_avg_acc))
Testing: 100%|██████████| 61/61 [00:21<00:00, 2.90it/s, accuracy=0.969, it=60, loss=0.759]
Testing Average Loss: 0.7215073446063779, Accuracy: 0.9702868852459017

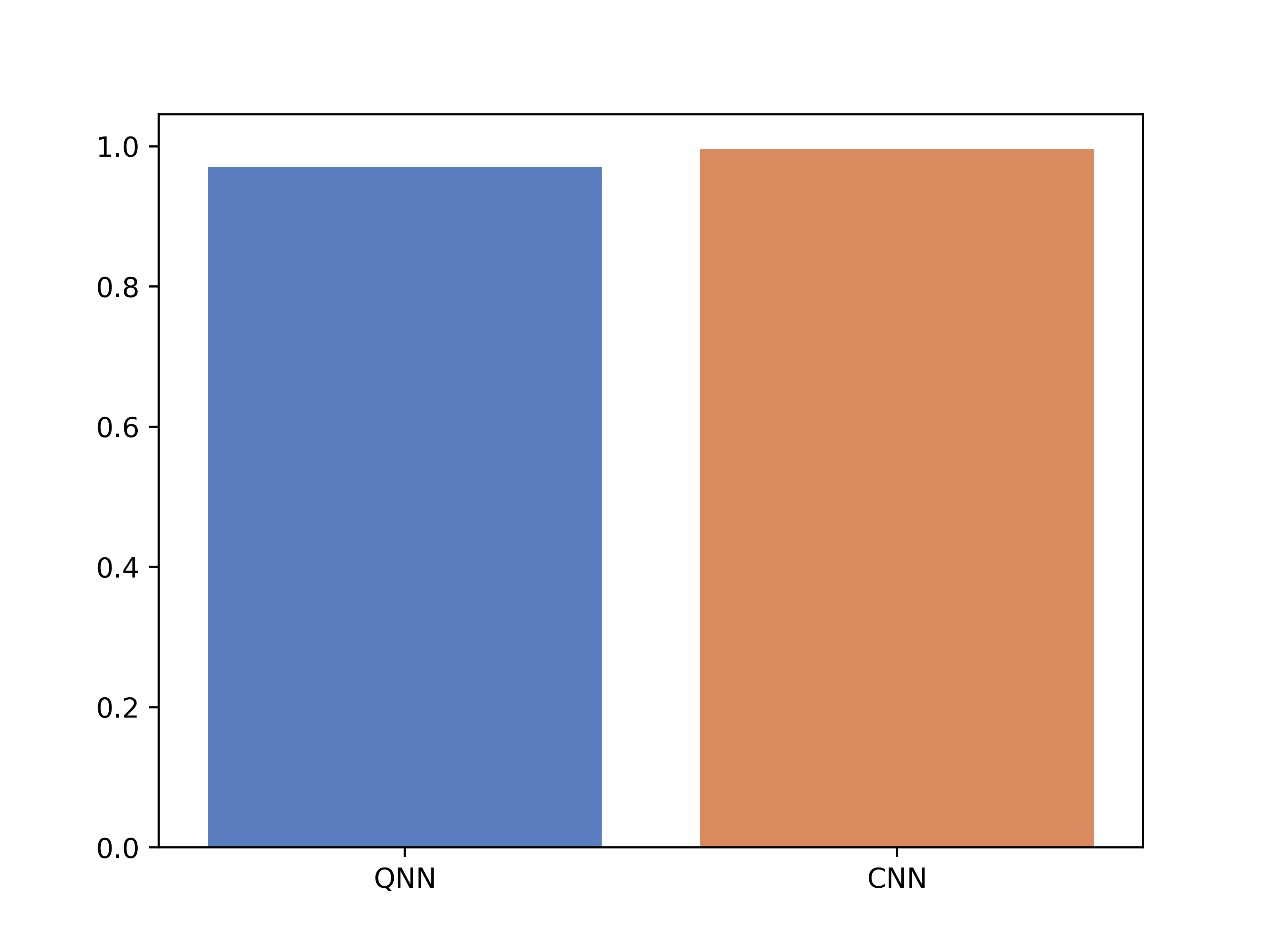

与经典人工神经网络对比¶
接下来我们将构建经典人工神经网络 ，并在相同的条件下（相同的预处理数据，优化器和损失函数）进行对比测试。
首先，导入 Pytorch 库，并针对 \(16 \times 16\) 图片构建一个简单的 ANN ：
import torch.nn as nn
import torch.nn.functional as F
class ClassicalNet(nn.Module):
def __init__(self):
super(ClassicalNet, self).__init__()
self.fc1 = torch.nn.Sequential(torch.nn.Linear(256, 16), torch.nn.ReLU())
self.fc2 = torch.nn.Linear(16, 1)
def forward(self, x):
x = torch.from_numpy(x).type(torch.float)
x = x.view(32, -1)
x = self.fc1(x)
x = self.fc2(x)
x = x.flatten()
return x
对于 ANN 来说任务简单，网络参数较少，为了避免过拟合，训练轮数将缩减为1：
EPOCH = 1
classical_net = ClassicalNet().to(torch.device("cpu"))
classical_optim = torch.optim.Adam([dict(params=classical_net.parameters(), lr=LR)])
loss_func = nn.MSELoss()
# train epoch
for ep in range(EPOCH):
classical_net.train()
loader = tqdm.tqdm(
classical_train_loader, desc="Training epoch {}".format(ep + 1), leave=True
)
# train iteration
for it, (x_train, y_train) in enumerate(loader):
classical_optim.zero_grad()
y_pred = classical_net(x_train).type(torch.float)
y_train = 2 * y_train - 1.0
y_train = torch.tensor(y_train).type(torch.float)
loss = loss_func(y_pred, y_train)
correct = np.sum((y_pred * y_train).detach().numpy() > 0)
accuracy = correct / len(y_train)
loss.backward()
classical_optim.step()
loader.set_postfix(
it=it,
loss="{:.3f}".format(loss),
accuracy="{:.3f}".format(accuracy),
)
# Validation
classical_net.eval()
loader_val = tqdm.tqdm(
classical_test_loader, desc="Validating epoch {}".format(ep + 1), leave=True
)
loss_val_list = []
total_correct = 0
for it, (x_test, y_test) in enumerate(loader_val):
y_pred = classical_net(x_test).type(torch.float)
y_test = 2 * y_test - 1.0
y_test = torch.tensor(y_test).type(torch.float)
loss_val = loss_func(y_pred, y_test)
loss_val_list.append(loss_val.cpu().detach().numpy())
correct = np.sum((y_pred * y_test).detach().numpy() > 0)
total_correct += correct
accuracy_val = correct / len(y_test)
loader_val.set_postfix(
it=it,
loss="{:.3f}".format(loss_val),
accuracy="{:.3f}".format(accuracy_val),
)
avg_loss = np.mean(loss_val_list)
ann_avg_acc = total_correct / (len(loader_val) * BATCH_SIZE)
print(
"Validation Average Loss: {}, Accuracy: {}".format(avg_loss, ann_avg_acc)
)
Training epoch 1: 100%|██████████| 376/376 [00:00<00:00, 482.75it/s, accuracy=1.000, it=375, loss=0.069]
Validating epoch 1: 100%|██████████| 61/61 [00:00<00:00, 1983.92it/s, accuracy=1.000, it=60, loss=0.076]
Validation Average Loss: 0.06602335721254349, Accuracy: 0.9959016393442623
QNN 与 ANN 对 MNIST 手写数据集数字3和6分类的准确率对比：
ax = sns.barplot(x=["QNN", "ANN"], y=[qnn_avg_acc, ann_avg_acc], palette="muted")
ax.set_yticks(ticks=[0, 0.2, 0.4, 0.6, 0.8, 1.0])
参考文献¶
[1] Edward F, Hartmut N. Classification with Quantum Neural Networks on Near Term Processors. arXiv:1802.06002 (2018)
[2] Le, P.Q., Dong, F. & Hirota, K. A flexible representation of quantum images for polynomial preparation, image compression, and processing operations. Quantum Inf Process 10, 63–84 (2011). https://doi.org/10.1007/s11128-010-0177-y
